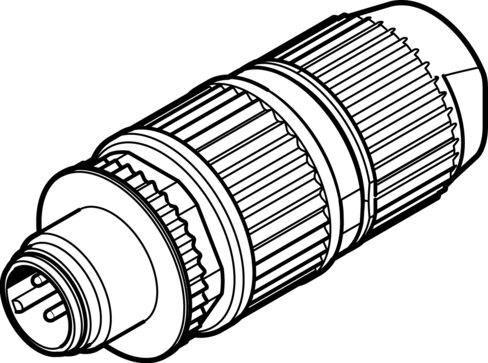

Reference imageConfirm configuration by manufacturer part number.
Festo
564947
Plug NECU-S-M12G4-HX-Q7
The Festo 564947 is an industrial component featuring a 4-pin, A-coded, straight M12x1 plug with an insulation displacement connector compliant with EN 61076-2-101 and EN 61984 norms. This c UL us-recognized part operates within a 0 V to 48 V AC/DC range, provides a 6 A current rating at 40°C, and maintains IP65 and IP67 protection degrees within an ambient temperature range of -25 °C to 85 °C. Constructed with a nickel-plated die-cast zinc and PA housing, the 33.3 g component supports approved cable diameters of 4.7 mm to 6 mm and connection cross-sections from 0.34 mm² to 0.75 mm² while meeting RoHS and VDMA24364-B2-L LABS conformity standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564947
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564947.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61984
- Certication
- c UL us - recognized (OL)
- Contact durability
- 3
- Product weight
- 33.3 g
- Electrical connection
- 4-pin | A-coded | M12x1 | Straight plug/insulation displacement connector
- DC operating voltage range
- 0 V...48 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 6 A
- Surge resistance
- 0.8 kV
- Approved cable diameter
- 4.7 mm...6 mm
- Individual wire diameter
- 0.1 mm
- Wire diameter
- 1.6 mm...2 mm
- Connection cross section
- 0.34 mm²...0.75 mm²
- Degree of protection
- IP65 | IP67
- Ambient temperature
- -25 °C...85 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Contamination level
- 3
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- PA | Die-cast zinc | Nickel-plated
- Material of screw-type lock
- Die-cast zinc, nickel-plated
- Seals material
- FPM | PUR
- Material of pin contacts
- Gold-plated
- Permissible insulating sheath
- PVC
