Festo
564996

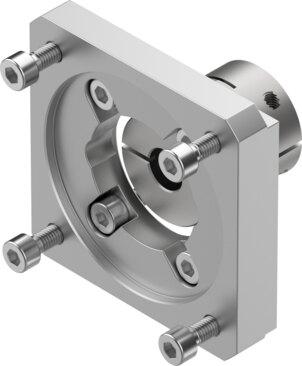

Axial kit EAMM-A-P8-38A-70A
The Festo 564996 is an industrial component featuring a nominal length of 13.75 mm, a mass moment of inertia of 5.87 kgmm², and a product weight of 200 g with RoHS-compliant materials. It supports any mounting position, a maximum rotational speed of 8000 rpm, and a transferable torque of 12.5 Nm, while providing IP40 protection alongside VDMA24364-B2-L LABS conformity. This unit operates within ambient temperatures of -10 °C to 60 °C, storage temperatures of -25 °C to 60 °C, and relative air humidity levels between 0 and 95%, utilizing actuator interface code P8-38A, motor-in interface code 70A, and coupling housing interface code 38A. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 564996
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 564996.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 13.75 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 200 g
- Interface code, actuator
- P8-38A
- Interface code, motor in
- 70A
- Interface code, coupling housing
- 38A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 564996. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
