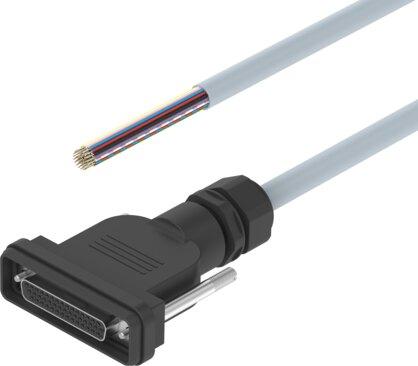

Reference imageConfirm configuration by manufacturer part number.
Festo
565289
Connecting cable NEBV-S1G44-K-2.5-N-LE39
The Festo 565289 is an industrial component featuring a 44-pin Sub-D socket electrical connection with a 2.5 m PVC-sheathed cable designed for static applications. This part includes a 4-40UNC mounting type, an operating voltage range of up to 30 V, a current rating of 0.86 A at 40° C, and a total product weight of 389 g. It provides IP65 and IP67 degrees of protection when mounted, operates in ambient temperatures from -5 °C to 60 °C, and complies with EU and UK RoHS directives with moderate corrosion resistance class CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565289
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565289.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- 4-40UNC
- Mounting position
- Any
- Product weight
- 389 g
- Electrical connection
- 44-pin | Socket | Sub-D
- DC operating voltage range
- 30 V
- Current rating at 40° C
- 0.86 A
- Cable length
- 2.5 m
- Cable characteristic
- For static applications
- Min. cable bending radius
- 95 mm
- Cable diameter
- 9.6 mm
- Cable diameter tolerance
- ± 0.5 mm
- Cable design
- 40 x 0.14 mm²
- Degree of protection
- IP65 | IP67 | In mounted state
- Ambient temperature
- -5 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
- Housing material
- PBT
- Material of pin contacts
- Bronze | Gold-plated
