565290

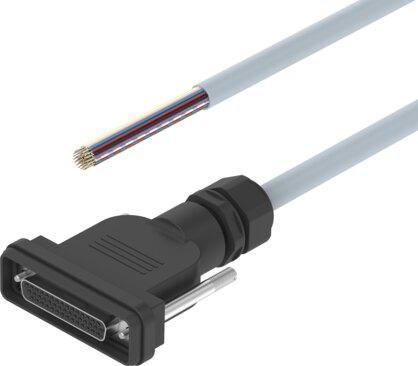

Name: Festo 565290 Connecting cable NEBV-S1G44-K-5-N-LE39
Brand: Festo

Connecting cable NEBV-S1G44-K-5-N-LE39

The Festo 565290 is an industrial component featuring a 44-pin Sub-D socket electrical connection with a 5 m PVC-sheathed cable designed for static applications. Weighing 737 g, this unit offers IP65 and IP67 protection ratings in the mounted state and operates within an ambient temperature range of -5 °C to 60 °C. The assembly utilizes 4-40UNC mounting across any position, supporting a 30 V DC operating voltage and a 0.86 A current rating at 40 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565290
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565290.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Type of mounting: 4-40UNC
Mounting position: Any
Product weight: 737 g
Electrical connection: 44-pin | Socket | Sub-D
DC operating voltage range: 30 V
Current rating at 40° C: 0.86 A
Cable length: 5 m
Cable characteristic: For static applications
Min. cable bending radius: 95 mm
Cable diameter: 9.6 mm
Cable diameter tolerance: ± 0.5 mm
Cable design: 40 x 0.14 mm²
Degree of protection: IP65 | IP67 | In mounted state
Ambient temperature: -5 °C...60 °C
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Material of cable sheath: PVC
Housing material: PBT
Material of pin contacts: Bronze | Gold-plated

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 565290. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
