Festo
565291

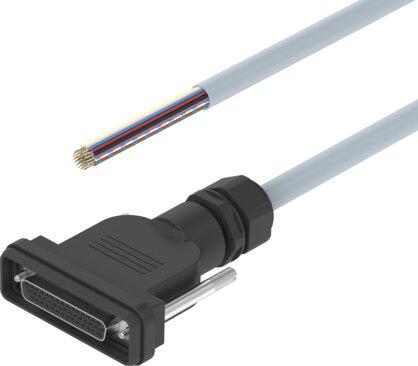

Connecting cable NEBV-S1G44-K-10-N-LE39
The Festo 565291 is a 1432 g industrial component featuring a 44-pin Sub-D socket electrical connection with a DC operating voltage range of 30 V and a current rating of 0.86 A at 40° C. Equipped with a 10 m PVC cable having a 9.6 mm diameter tolerance of ± 0.5 mm, 40 x 0.14 mm² design, and 95 mm minimum bending radius, this part utilizes 4-40UNC mounting for any position and provides IP65 and IP67 protection in mounted states under ambient temperatures from -5 °C to 60 °C. The assembly includes RoHS compliance per EU and UK directives, VDMA24364-B2-L LABS conformity, and a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565291
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565291.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- 4-40UNC
- Mounting position
- Any
- Product weight
- 1432 g
- Electrical connection
- 44-pin | Socket | Sub-D
- DC operating voltage range
- 30 V
- Current rating at 40° C
- 0.86 A
- Cable length
- 10 m
- Cable characteristic
- For static applications
- Min. cable bending radius
- 95 mm
- Cable diameter
- 9.6 mm
- Cable diameter tolerance
- ± 0.5 mm
- Cable design
- 40 x 0.14 mm²
- Degree of protection
- IP65 | IP67 | In mounted state
- Ambient temperature
- -5 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- Material of cable sheath
- PVC
- Housing material
- PBT
- Material of pin contacts
- Bronze | Gold-plated
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565291. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
