Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

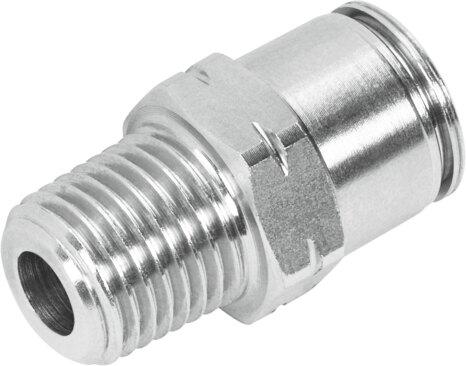

Reference imageConfirm configuration by manufacturer part number.
Festo
565318
Push-in fitting CRQS-1/8-5/32-U
The Festo part number 565318 is an industrial component featuring a straight design with a nominal width of 0.118 in and a tubing insertion depth of 13 mm, operating via the push-pull principle with a standard size and a product weight of 0.342 oz. This component includes a male thread 1/8 NPTF pneumatic connection 1, a pneumatic connection 2 for 5/32" outside diameter pneumatic tubing, an external hexagon 15/32 mounting type, and a silver releasing ring, supporting any mounting position. It functions with compressed air as per ISO 8573-1:2010 [7:-:-] within an operating pressure range of -0.95 bar to 14 bar and an ambient temperature range of -20 °C to 150 °C, while offering a corrosion resistance class of 4 for particularly high corrosion stress and VDMA24364 Zone III LABS conformity for use with PFAN usable connector cables. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565318
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565318.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.118 in
- Tubing insertion depth
- 13 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 0.342 oz
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon 15/32
- Pneumatic connection 1
- Male thread 1/8 NPTF
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565318. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
