Festo
565329

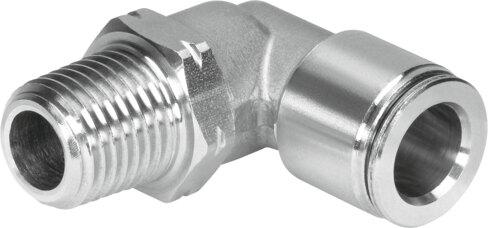

Push-in L-fitting CRQSL-1/4-5/16-U
The Festo 565329 is a standard L-shaped industrial component featuring an external hexagon 35/64 mounting type, a 1/4 NPTF male thread for pneumatic connection 1, and a pneumatic connection 2 designed for 5/16" outside diameter pneumatic tubing with a 16 mm insertion depth. Operating on compressed air as per ISO 8573-1:2010 [7:-:-], this push-pull design handles an operating pressure range of -13.775 psi to 203 psi across an ambient temperature range of -4 °F to 302 °F. Built with a CRC rating of 4 for particularly high corrosion stress and VDMA24364 Zone III LABS conformity, the unit includes a silver releasing ring and weighs 0.967 oz with any mounting position permitted. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565329
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565329.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.236 in
- Tubing insertion depth
- 16 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 0.967 oz
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon 35/64
- Pneumatic connection 1
- Male thread 1/4 NPTF
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
