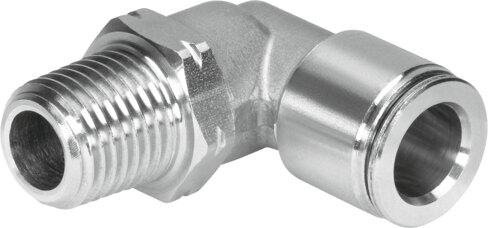

Reference imageConfirm configuration by manufacturer part number.
Festo
565330
Push-in L-fitting CRQSL-1/4-3/8-U
The Festo 565330 is an L-shaped industrial component utilizing a push-pull structural design with a standard size and a 0.335-inch nominal width. This unit features a 1/4 NPTF male thread for pneumatic connection 1, a connection for 3/8-inch outside diameter pneumatic tubing for connection 2, an 18.5 mm tubing insertion depth, and an external hexagon 21/32 mounting type. Operating within a temperature range of -4 °F to 302 °F (-20 °C to 150 °C) and a pressure range of -13.775 psi to 203 psi (-0.095 MPa to 1.4 MPa), it handles compressed air as per ISO 8573-1:2010 [7:-:-] and exhibits a corrosion resistance class of 4 for particularly high corrosion stress. Submit part number 565330, required quantity, and application specifications to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565330
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565330.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.335 in
- Tubing insertion depth
- 18.5 mm
- Mounting position
- Any
- Design
- L-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 1.38 oz
- Usable connector cables
- PFAN
- Type of mounting
- External hexagon 21/32
- Pneumatic connection 1
- Male thread 1/4 NPTF
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565330. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
