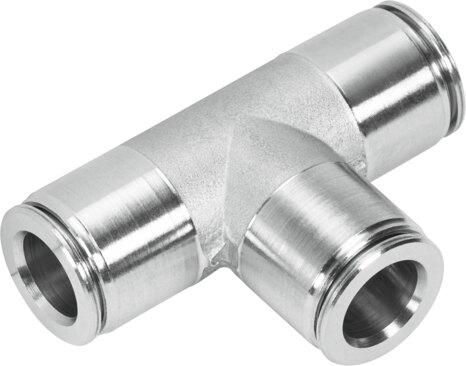

Reference imageConfirm configuration by manufacturer part number.
Festo
565350
Push-in T-connector CRQST-5/32T-U
The Festo part number 565350 is a standard T-shaped industrial component utilizing a push-pull structural design with a nominal width of 0.138 inches and a tubing insertion depth of 13 mm. Featuring a silver releasing ring and weighing 0.564 oz, this unit accommodates 5/32" pneumatic tubing on connections 1 and 2, supports PFAN usable connector cables, and operates within a pressure range of -0.95 bar to 14 bar across ambient temperatures from -4 °F to 302 °F. It handles compressed air compliant with ISO 8573-1:2010 [7:-:-], exhibits a corrosion resistance class of 4 for particularly high corrosion stress, maintains VDMA24364 Zone III LABS conformity, and includes RoHS-compliant materials in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565350
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565350.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.138 in
- Tubing insertion depth
- 13 mm
- Mounting position
- Any
- Design
- T-shape
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 0.564 oz
- Usable connector cables
- PFAN
- Pneumatic connection 1
- For pneumatic tubing outside diameter 5/32"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565350. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
