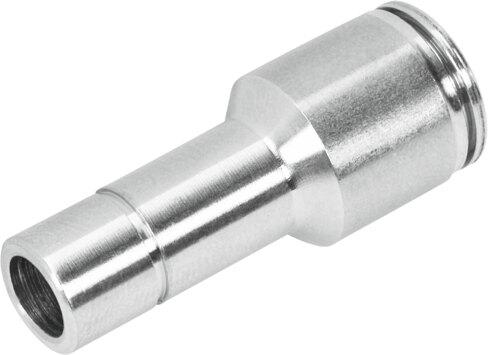

Reference imageConfirm configuration by manufacturer part number.
Festo
565355
Push-in connector CRQS-1/4H-5/32-U
The Festo 565355 is a standard straight industrial component featuring a push-pull structural design with a nominal width of 0.118 in and a 13 mm tubing insertion depth. Built with a high-alloy stainless steel housing providing a corrosion resistance class of 4 for particularly high corrosion stress, this part operates within a temperature range of -20 °C to 150 °C and an operating pressure of -0.095 MPa to 1.4 MPa using compressed air as per ISO 8573-1:2010 [7:-:-]. It connects a 1/4" push-in sleeve to a 5/32" outside diameter pneumatic tubing and accommodates PFAN usable connector cables in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 1.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565355
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565355.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.118 in
- Tubing insertion depth
- 13 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Usable connector cables
- PFAN
- Pneumatic connection 1
- Push-in sleeve Ø 1/4"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
