Festo
565358

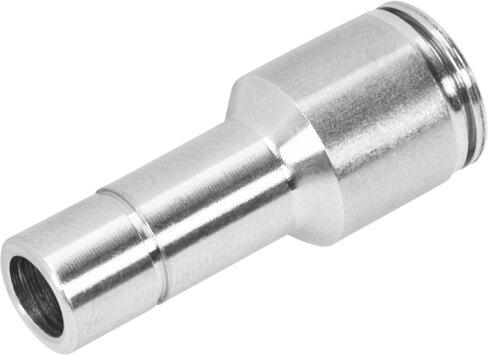

Push-in connector CRQS-3/8H-5/16-U
This Festo industrial component, part number 565358, features a straight design with a push-pull structural design and a standard size nominal width of 0.256 in. The unit weighs 0.547 oz and includes a 3/8" push-in sleeve as pneumatic connection 1 alongside a 5/16" outside diameter pneumatic tubing connection 2, accommodating PFAN usable connector cables and a 16 mm tubing insertion depth. Operating across an ambient temperature range of -20 °C to 150 °C (-4 °F to 302 °F) and pressures from -0.095 MPa to 1.4 MPa (-0.95 bar to 14 bar / -13.775 psi to 203 psi), it utilizes compressed air according to ISO 8573-1:2010 [7:-:-] in any mounting position. The assembly provides corrosion resistance class 4 for particularly high corrosion stress, VDMA24364 Zone III LABS conformity, RoHS compliant materials, a silver releasing ring, and food industry suitability detailed in supplementary documentation. Submit part number 565358, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565358
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565358.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.256 in
- Tubing insertion depth
- 16 mm
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1.4 MPa | -0.95 bar...14 bar | -13.775 psi...203 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -20 °C...150 °C
- Product weight
- 0.547 oz
- Usable connector cables
- PFAN
- Pneumatic connection 1
- Push-in sleeve Ø 3/8"
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/16"
- Ambient temperature Fahrenheit
- -4 °F...302 °F
- Releasing ring color
- Silver
- Note on materials
- RoHS compliant
- Housing material
- high-alloy stainless steel
- Releasing ring material
- high-alloy stainless steel
- Material of tubing seal
- FPM
- Material of tube retaining claw
- high-alloy stainless steel
