Festo
565376

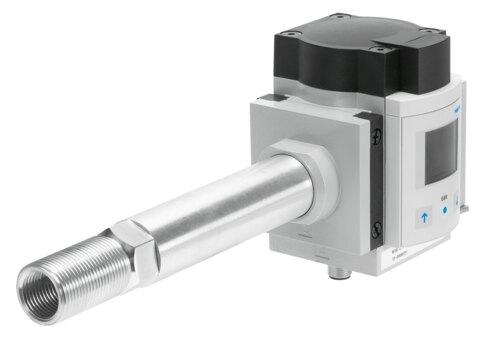

Flow sensor SFAM-62-1000L-TG12-2SV-M12
The Festo 565376 is a thermal industrial component that measures unidirectional volumetric flow rate and volume from left to right using a heat loss measuring principle with a flow measuring range of 10 l/min to 1000 l/min. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] or nitrogen, it features an operating pressure up to 1.6 MPa, an overload pressure up to 2 MPa, and a medium and ambient temperature range of 0 °C to 50 °C. It complies with RCM, c UL us, CE, UKCA, and RoHS directives, while delivering a flow rate accuracy of ±(3% o.m.v. + 0.3% FS). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565376
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565376.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Volume | Volumetric ow rate
- Flow direction
- Unidirectional | From left to right
- Measuring principle
- Thermal
- Method of measurement
- Heat loss
- Flow measuring range start value
- 10 l/min
- Flow measuring range end value
- 1000 l/min
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Zero point repetition accuracy in ± %FS
- 0.2 %FS
- Repetition accuracy margin in ± %FS
- 0.8 %FS
- Temperature co-efficient margin in ± %FS/K
- typ. 0.1%FS/K
- Pressure inuence of margin in ±%FS/bar
- 0.5 %FS/b.
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator or threshold value comparator, adjustable
