Festo
565384

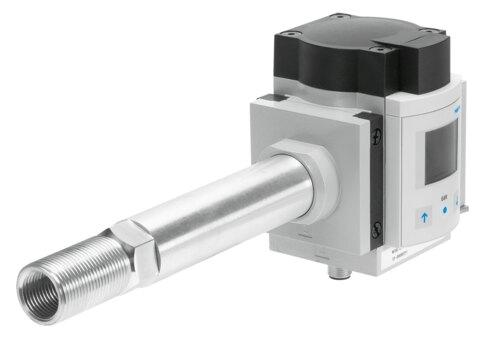

Flow sensor SFAM-62-5000L-TG12-2SV-M12
The Festo part number 565384 is an industrial component utilizing a thermal heat loss measuring principle for unidirectional volumetric flow rate and volume measurement from left to right, spanning a flow measuring range of 50 l/min to 5000 l/min. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] or nitrogen at a medium and ambient temperature of 0 °C to 50 °C, an operating pressure up to 1.6 MPa (16 bar / 232 psi), and an overload pressure of 2 MPa (20 bar / 290 psi). Certified with the RCM compliance mark and c UL us - recognized (OL) by UL E322346, this RoHS-compliant unit conforms to EU and UK directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565384
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565384.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Measured variable
- Volume | Volumetric ow rate
- Flow direction
- Unidirectional | From left to right
- Measuring principle
- Thermal
- Method of measurement
- Heat loss
- Flow measuring range start value
- 50 l/min
- Flow measuring range end value
- 5000 l/min
- Operating pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of ow rate
- ±(3% o.m.v. + 0.3% FS)
- Zero point repetition accuracy in ± %FS
- 0.2 %FS
- Repetition accuracy margin in ± %FS
- 0.8 %FS
- Temperature co-efficient margin in ± %FS/K
- typ. 0.1%FS/K
- Pressure inuence of margin in ±%FS/bar
- 0.5 %FS/b.
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator or threshold value comparator, adjustable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565384. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
