Name: Festo 565398 Flow sensor SFAB-200U-HQ10-2SV-M12
Brand: Festo

Flow sensor SFAB-200U-HQ10-2SV-M12

The Festo part number 565398 is an industrial thermal measuring principle component utilizing a heat loss method to measure volume and volumetric flow rate for unidirectional P1 to P2 flow directions. This unit features a flow measuring range from 2 l/min to 200 l/min, an operating pressure of 0 MPa to 1 MPa (0 bar to 10 bar, 0 psi to 145 psi), and operates with compressed air as per ISO 8573-1:2010 [7:4:4] or nitrogen within medium and ambient temperatures of 0 °C to 50 °C. It maintains a flow rate accuracy of ± (3% o.m.v. + 0.3% FS), a zero point repetition accuracy of 0.2 %FS, a repetition accuracy margin of 0.8 %FS, and a temperature coefficient margin of typ. 0.1 %FS/K at a nominal temperature of 23 °C. Certified with RCM compliance, c UL us recognition (UL E322346), CE marking per EU EMC and RoHS directives, and corresponding UKCA markings, the RoHS-compliant component is ready for procurement. Please submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565398
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565398.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - Recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Certicate issuing authority: UL E322346
Note on materials: RoHS-compliant
Measured variable: Volume | Volumetric ow rate
Flow direction: Unidirectional | P1 -> P2
Measuring principle: Thermal
Method of measurement: Heat loss
Flow measuring range start value: 2 l/min
Flow measuring range end value: 200 l/min
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4] | Nitrogen
Temperature of medium: 0 °C...50 °C
Ambient temperature: 0 °C...50 °C
Nominal temperature: 23 °C
Accuracy of ow rate: ± (3% o.m.v. + 0.3% FS)
Zero point repetition accuracy in ± %FS: 0.2 %FS
Repetition accuracy margin in ± %FS: 0.8 %FS
Temperature co-eﬃcient margin in ± %FS/K: typ. 0. 1%FS/K
Pressure inuence of margin in ±%FS/bar: 0.5 %FS/b.

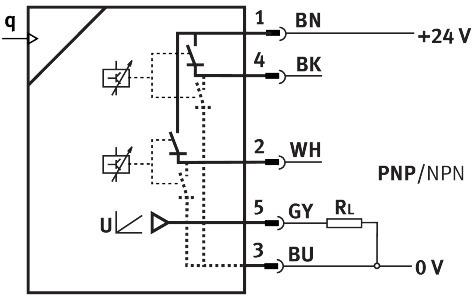

Switching output: 2 x PNP or 2 x NPN switchable
Switching function: Window comparator | Threshold value comparator
Switching element function: N/C contact/N/O contact switchable
Max. output current: 100 mA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 565398. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
