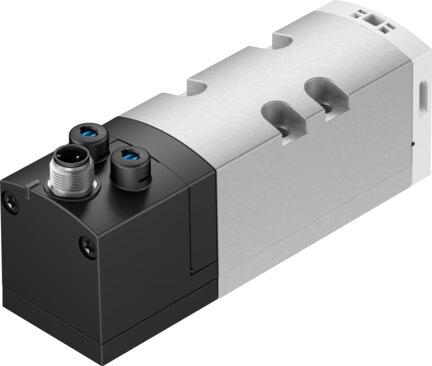

Name: Festo 565448 Air solenoid valve VSVA-B
Brand: Festo

Air solenoid valve VSVA-B

The Festo 565448 is an electrical piston gate valve utilizing a soft sealing principle and operating at 24V DC with an operating pressure range of -0.09 MPa to 1.6 MPa ( -0.9 bar to 16 bar ). Featuring a normal nominal flow rate between 1100 l/min and 2800 l/min, this component supports multiple valve functions including 2x2/2, 2x3/2, and 5/2-way through 5/3-way configurations, with pneumatic working ports available in G1/4, G3/8, and ISO 5599-1 sub-bases of sizes 1 and 2. It holds certifications from c CSA us, c UL us, C-Tick, and KC-EMV alongside CE and UKCA markings, while offering IP65 and NEMA 4 protection in any mounting position conforming to ISO 5599-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565448
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565448.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x2/2 closed, monostable | 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 5/2-way, bistable | 5/2-way, dominant, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
Actuation type: Electrical
Width: 42 mm | 52 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min...2800 l/min
Pneumatic working port: Sub-base, size 1 according to ISO 5599-1 | Sub-base, size 2 according to ISO 5599-1 | G1/4 | G3/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Certication: C-Tick | c CSA us (OL) | c UL us - recognized (OL)
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 565448. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
