Name: Festo 565449 Air solenoid valve VOVC-BT-T32C-MH-F-1T1
Brand: Festo

Air solenoid valve VOVC-BT-T32C-MH-F-1T1

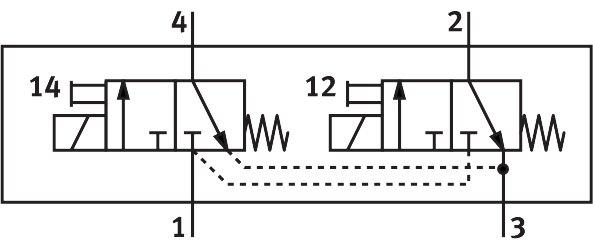

The Festo 565449 is a 2x3/2 closed, monostable industrial component featuring electrical actuation, a 10 mm valve size, and a sub-base pneumatic working port. Operating at 24V DC with an operating pressure range of 0 MPa to 0.8 MPa (0 bar to 8 bar, 0 psi to 116 psi), this directly controlled poppet valve utilizes a mechanical spring reset, soft sealing principle, and non-detenting manual override. It incorporates a 0.65 mm nominal width, negative overlap lap, non-reversible flow direction, non-throttleable exhaust air function, IP40 degree of protection, LED signal status display, and c UL us (OL) recognition for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565449
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565449.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Pneumatic working port: Sub-base
Operating voltage: 24V DC
Operating pressure: 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
Structural design: Poppet valve with spring return
Reset method: Mechanical spring
Degree of protection: IP40
Certication: c UL us - recognized (OL)
Nominal width: 0.65 mm
Exhaust air function: Cannot be throttled
Sealing principle: Soft
Mounting position: Any
Manual override: Non-detenting
Type of control: directly
Flow direction: Non-reversible
Lap: Negative overlap
Signal status display: LED
b-value: 0.24
C value: 0.048 l/sbar
Flow rate of pneumatic valve: 10 l/min
Optimized ow rate of pneumatic valve pneumatically concatenated ow: 10 l/min
Switching time oﬀ: 4.7 ms
On switching time: 5.2 ms
Max. positive test pulse with 0 signal: 600 µs
Max. negative test pulse on 1 signal: 800 µs
Coil characteristics: 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
Permissible voltage uctuations: +/- 10%
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 565449. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
