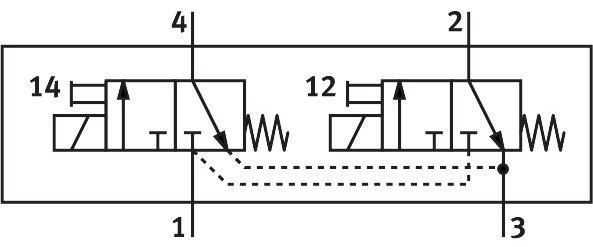

Reference imageConfirm configuration by manufacturer part number.
Festo
565450
Air solenoid valve VOVC-BT-T32C-MT-F-1T1
The Festo 565450 is a directly controlled industrial component featuring a 2x3/2 closed, monostable valve function and a compact 10 mm valve size with a 0.65 mm nominal width. Operating on 24V DC within a pressure range of 0 bar to 8 bar (0 psi to 116 psi), this poppet valve utilizes a mechanical spring reset, soft sealing principle, and sub-base pneumatic working ports with an IP40 protection rating. Certified as c UL us - recognized (OL), it includes a signal status display LED and supports both detenting and non-detenting manual override in any mounting position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565450
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565450.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Pneumatic working port
- Sub-base
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar | 0 psi...116 psi
- Structural design
- Poppet valve with spring return
- Reset method
- Mechanical spring
- Degree of protection
- IP40
- Certication
- c UL us - recognized (OL)
- Nominal width
- 0.65 mm
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- directly
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- LED
- b-value
- 0.24
- C value
- 0.048 l/sbar
- Flow rate of pneumatic valve
- 10 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 10 l/min
- Switching time off
- 4.7 ms
- On switching time
- 5.2 ms
- Max. positive test pulse with 0 signal
- 600 µs
- Max. negative test pulse on 1 signal
- 800 µs
- Coil characteristics
- 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
- Permissible voltage uctuations
- +/- 10%
