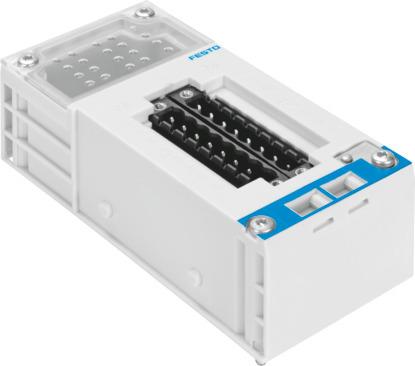

Name: Festo 565703 Manifold block CPX-P-AB-2XKL-8POL-8DE-N-IS
Brand: Festo

Manifold block CPX-P-AB-2XKL-8POL-8DE-N-IS

The Festo part number 565703 is an industrial component measuring 50 mm in width, 107 mm in length, and 70 mm in height, including the interlinking block and connection system. Weighing 100 g, this unit mounts on the interlinking block CPX-M-GE... and operates within an ambient temperature range of -5 °C to 50 °C with an IP20 degree of protection and 95% non-condensing relative air humidity. It features ATEX and UKCA markings, VDMA24364 zone III LABS conformity, RoHS-compliant materials, and ignition protection for explosive gas and dust environments as certified by IECEx ZLM 12.0007 X and ZELM 12 ATEX 0500 X. Submit the exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565703
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565703.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 70 mm
Type of mounting: On interlinking block CPX-M-GE...
Product weight: 100 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 95 % | Non-condensing
Degree of protection: IP20
Corrosion resistance class (CRC): 2 - Moderate corrosion stress | (when installed)
LABS (PWIS) conformity: VDMA24364 zone III
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 0 (IEC-EX) | Zone 20 (IEC-EX) | Zone 22[20] (UKEX) | Zone 2[0] (UKEX)
ATEX category gas: II (1) G
ATEX category for dust: II (1) D
Explosion protection certication outside the EU: EPL Da (IEC-EX) | EPL Dc[Da] (GB) | EPL Ga (IEC-EX) | EPL Gc[Ga] (GB)
Type of ignition protection for gas: [Ex ia Ga] IIC
Type of (ignition) protection for dust: [Ex ia Da] IIIC
Explosive ambient temperature: -5°C <= Ta <= +50°C
Certicate issuing authority: IECEx ZLM 12.0007 X | ZELM 12 ATEX 0500 X
Note on materials: RoHS-compliant
Housing material: PA-reinforced
Electrical connection: 8-pin/8-pin
No. of inputs: 8
