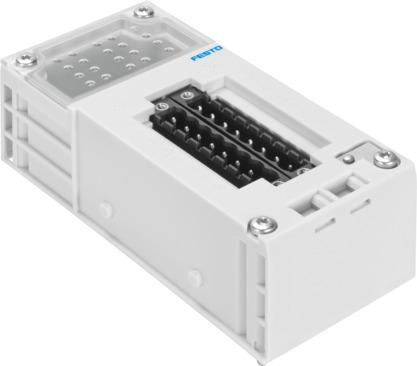

Reference imageConfirm configuration by manufacturer part number.
Festo
565704
Manifold block CPX-P-AB-2XKL-8POL
The Festo 565704 is an industrial component designed for mounting on an interlinking block CPX-M-GE, featuring dimensions of 50 mm by 107 mm by 70 mm including the interlinking block and connection system. Built with a reinforced PA housing and an 8-pin/8-pin electrical connection, this RoHS-compliant part weighs 100 g and provides an IP20 degree of protection with a moderate corrosion resistance class (CRC 2) when installed. It operates within an ambient temperature range of -5 °C to 50 °C, supports storage temperatures from -20 °C to 70 °C, maintains 95% non-condensing relative air humidity, and conforms to VDMA24364 zone III LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565704
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565704.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Dimensions W x L x H
- (incl. interlinking block and connection system) | 50 mm x 107 mm x 70 mm
- Type of mounting
- On interlinking block CPX-M-GE...
- Product weight
- 100 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95 % | Non-condensing
- Degree of protection
- IP20
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress | (when installed)
- LABS (PWIS) conformity
- VDMA24364 zone III
- Note on materials
- RoHS-compliant
- Housing material
- PA-reinforced
- Electrical connection
- 8-pin/8-pin
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565704. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
