Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
565774

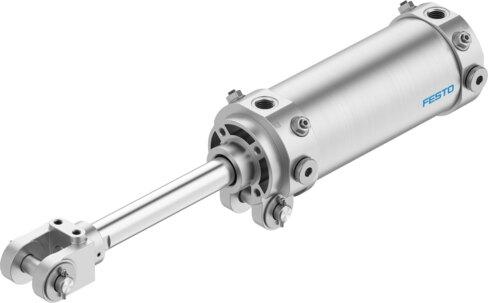

Hinge cylinder DWB-63-100-Y-AB-G
Engineered as a double-acting industrial component, this Festo part number 565774 features a 63 mm piston diameter and a 100 mm stroke with an M16x1.5 external thread on the piston rod end. The unit incorporates adjustable pneumatic cushioning at both ends with an integrated flow control, a 20 mm cushioning length, and a swivel mounting on the bearing cap with a 19.5 mm wide rod clevis. Operating between 1 bar and 10 bar using compressed air meeting ISO 8573-1:2010 [7:4:4], it delivers a theoretical retracting force of 1682 N at 6 bar while accommodating position sensing via a proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 565774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 565774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Wide rod clevis/swivel mounting
- 19.5 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod with rod clevis | Swivel mounting on bearing cap | Cylinder barrel
- Velocity control
- Integrated ow control at both ends
- Position sensing
- Via proximity switch
- Piston rod end
- External thread with rod clevis
- Operating pressure
- 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 1.3 J
- Cushioning length
- 20 mm
- Theoretical force at 6 bar, retracting
- 1682 N
- Theoretical force at 6 bar, advancing
- 1870 N
- Moving mass at 0 mm stroke
- 741 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 1600 g
- Additional weight per 10 mm stroke
- 42 g
- Alternative connections
- See product drawing
- Type of mounting
- With swivel mounting on bearing cap | With accessories
- Pneumatic connection
- G1/4
- Rod clevis material
- Cast steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 565774. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
