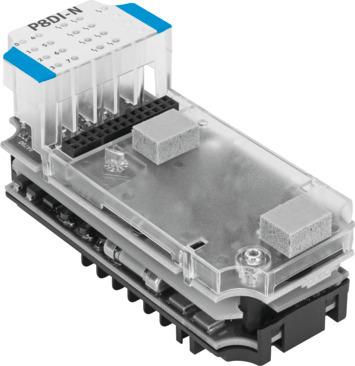

Name: Festo 565934 Input module CPX-P-8DE-N-IS
Brand: Festo

Input module CPX-P-8DE-N-IS

The Festo 50 mm industrial component, part number 565934, features dimensions of 50 mm by 107 mm by 70 mm including the interlinking block and connection system, and weighs 100 g for mounting on interlinking block CPX-M-GE... Designed with ATEX and UKCA markings for explosion prevention in Zone 0, Zone 20, Zone 22[20], and Zone 2[0], it supports a maximum cable length of 200 m and operates within an ambient temperature range of -5 °C to 50 °C. The unit conforms to VDMA24364 zone III LABS requirements and features ignition protection for gas classified as [Ex ia Ga] IIC and for dust as [Ex ia Da] IIIC. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 565934
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 565934.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: (incl. interlinking block and connection system) | 50 mm x 107 mm x 70 mm
Width dimension: 50 mm
Type of mounting: On interlinking block CPX-M-GE...
Product weight: 100 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Relative air humidity: 95 % | Non-condensing
Degree of protection: Depends on manifold block
Note on vibration resistance: SG1 on H-rail | SG2 on direct mounting
Note on shock resistance: SG1 on H-rail | SG2 on direct mounting
Max. cable length: 200 m
LABS (PWIS) conformity: VDMA24364 zone III
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 0 (IEC-EX) | Zone 20 (IEC-EX) | Zone 22[20] (UKEX) | Zone 2[0] (UKEX)
ATEX category gas: II (1) G
ATEX category for dust: II (1) D
Explosion protection certication outside the EU: EPL Da (IEC-EX) | EPL Dc[Da] (GB) | EPL Ga (IEC-EX) | EPL Gc[Ga] (GB)
Type of ignition protection for gas: [Ex ia Ga] IIC
Type of (ignition) protection for dust: [Ex ia Da] IIIC
Explosive ambient temperature: -5°C <= Ta <= +70°C
Certicate issuing authority: IECEx ZLM 12.0007 X | ZELM 12 ATEX 0500 X
Note on materials: RoHS-compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 565934. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
