Festo
566205

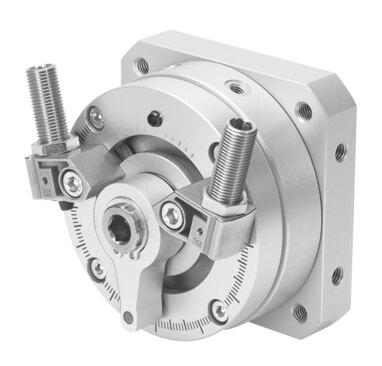

Rotary actuator DSM-16-270-P1-A-B
The Festo part number 566205 is a double-acting rotary vane industrial component featuring a size 16 design with an operating pressure range of 0.18 MPa to 1 MPa and elastic cushioning rings or pads at both ends with a fixed stop. This unit offers a swivel angle and adjustment range of 0 degrees to 246 degrees, a 9-degree cushioning angle, a -6-degree precision adjustment, a 17 mm permissible stop radius, and a repetition accuracy of 0.1 degrees. It operates using compressed air per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -10 °C to 60 °C, supporting position sensing via proximity switch and a maximum swivel frequency of 2 Hz at 6 bar. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566205
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566205.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Cushioning angle
- 9 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 17 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.18 MPa...1 MPa | 1.8 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 160 N
- Max. axial force
- 30 N
- Max. radial force
- 75 N
- Theoretical torque at 6 bar
- 2.5 Nm
- Permissible mass moment of inertia
- 0.03 kgm²
- Product weight
- 475 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566205. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
