Festo
566207

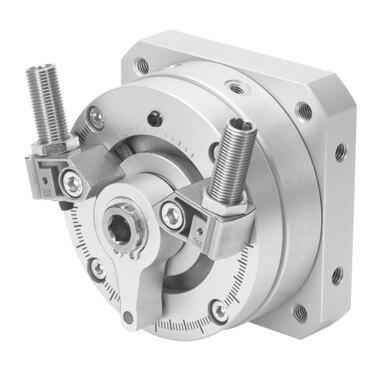

Rotary actuator DSM-25-270-P1-A-B
The Festo part number 566207 is a size 25 double-acting industrial component featuring a rotary vane structural design with an operating pressure range of 0.15 MPa to 1 MPa and a swivel angle from 0 deg to 246 deg. This unit includes elastic cushioning rings at both ends with a fixed stop, a permissible stop radius of 21 mm, a maximum stop force of 320 N, and position sensing via a proximity switch. It operates on compressed air meeting ISO 8573-1:2010 [7:-:-] standards within an ambient temperature range of -10 °C to 60 °C, achieving a repetition accuracy of 0.1 deg and a maximum swivel frequency of 2 Hz at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566207
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566207.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Cushioning angle
- 7.5 deg
- Adjustment range of swivel angle
- 0 deg...246 deg
- Swivel angle
- 0 deg...246 deg
- Permissible stop radius
- 21 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 320 N
- Max. axial force
- 50 N
- Max. radial force
- 120 N
- Theoretical torque at 6 bar
- 5 Nm
- Permissible mass moment of inertia
- 0.045 kgm²
- Product weight
- 715 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
