Festo
566212

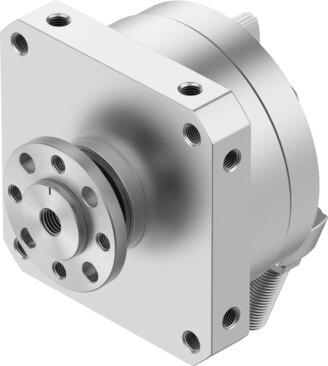

Rotary actuator DSM-40-270-P1-FW-A-B
The Festo part number 566212 is a double-acting rotary vane industrial component featuring a size 40 construction, an adjustable swivel angle of 0 deg to 240 deg with a 6.5 deg cushioning angle, and elastic cushioning rings or pads at both ends with a fixed stop. It operates within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:-:-], supporting oil lubrication, a maximum swivel frequency of 2 Hz at 6 bar, a 0.1 deg repetition accuracy, and a maximum stop force of 650 N. This unit includes position sensing via a proximity switch, a precision adjustment of -6 deg, a permissible stop radius of 40 mm, and a VDMA24364-B1/B2-L LABS conformity rating for ambient temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566212
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566212.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Cushioning angle
- 6.5 deg
- Adjustment range of swivel angle
- 0 deg...240 deg
- Swivel angle
- 0 deg...240 deg
- Permissible stop radius
- 40 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with xed stop
- Mounting position
- Any
- Precision adjustment
- -6 deg
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. swivel frequency at 6 bar
- 2 Hz
- Repetition accuracy
- 0.1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. stop force
- 650 N
- Max. axial force
- 120 N
- Max. radial force
- 350 N
- Theoretical torque at 6 bar
- 20 Nm
- Permissible mass moment of inertia
- 0.105 kgm²
- Product weight
- 3005 g
- Type of mounting
- With internal thread
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Drive shaft material
- Steel | Nickel-plated
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566212. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
