Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

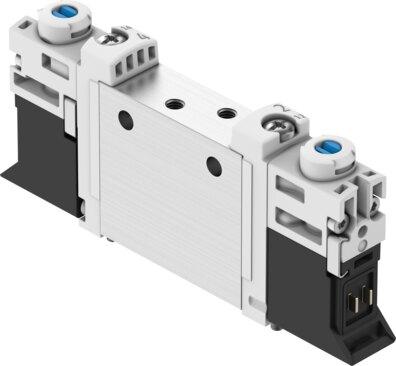

Reference imageConfirm configuration by manufacturer part number.
Festo
566440
Air solenoid valve VUVG-L10A-P53E-T-M3-1P3
The Festo 566440 is an electrical 5/3 exhausted piston gate valve featuring a 10 mm size, a nominal width of 2 mm, and an M3 pneumatic working port. Designed with a soft sealing principle, internal pilot air supply, and a mechanical spring reset method, this component operates on 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) to deliver a normal nominal flow rate of 90 l/min. It includes an adjustable exhaust air function, versatile mounting position, and a covered manual override with detenting and non-detenting capabilities, while carrying IP40 and IP65 protection ratings with a plug socket. Regulatory compliance is established through CE, UKCA, and RCM markings, alongside c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566440
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566440.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 90 l/min
- Pneumatic working port
- M3
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566440. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
