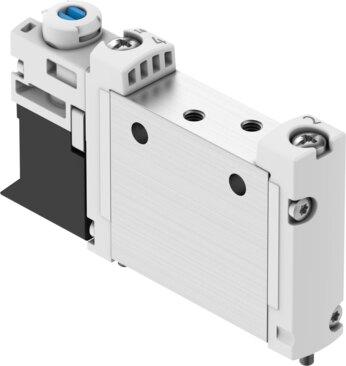

Reference imageConfirm configuration by manufacturer part number.
Festo
566443
Air solenoid valve VUVG-L10A-M52-RZT-M3-1P3
The Festo part number 566443 is an electrical 5/2-way monostable industrial component featuring a 10 mm valve size, a 2 mm nominal width, and a piston gate valve structural design with a soft sealing principle. It operates on 24V DC with an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers a normal nominal flow rate of 100 l/min through M3 pneumatic working ports and an external pilot air supply port. Designed with an adjustable exhaust air function, mechanical and pneumatic spring reset methods, and covered, detenting, or non-detenting manual override options, it achieves IP40, IP65, or plug socket degrees of protection while carrying RCM, c UL us, CE, and UKCA conformity markings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566443
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566443.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic working port
- M3
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.25 MPa...0.8 MPa
- Pilot pressure
- 2.5 bar...8 bar
