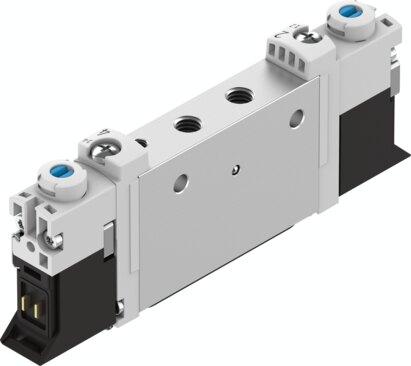

Reference imageConfirm configuration by manufacturer part number.
Festo
566468
Air solenoid valve VUVG-L10-P53C-ZT-M5-1P3
The Festo 566468 is an electrical 5/3-way closed industrial component featuring a 10 mm valve size, piston gate valve structural design, and soft sealing principle with a normal nominal flow rate of 210 l/min normalized to DIN 1343. It operates on 24V DC with an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and includes M5 pneumatic working ports, external pilot air supply ports, and an adjustable exhaust air function. Additional features comprise a mechanical spring reset method, piloted control, nominal width of 3.2 mm, any mounting position, covered detenting and non-detenting manual override, and IP40, IP65, or plug socket degree of protection ratings, alongside RCM compliance, c UL us recognition, and CE, UKCA, EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566468
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566468.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 210 l/min
- Pneumatic working port
- M5
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 3.2 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
