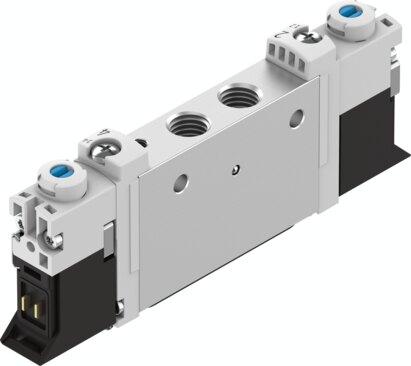

Reference imageConfirm configuration by manufacturer part number.
Festo
566476
Air solenoid valve VUVG-L10-P53C-T-M7-1P3
The Festo 566476 is an electrical 5/3-way closed industrial component featuring a piston gate valve structural design, soft sealing principle, and mechanical spring reset method. This piloted valve includes a 10 mm valve size, 3.5 mm nominal width, internal pilot air supply port, M7 pneumatic working port, and adjustable exhaust air function delivering a normal nominal flow rate of 300 l/min to 320 l/min. Operating at 24V DC within a 0.3 MPa to 0.8 MPa (3 bar to 8 bar) pressure range, the unit offers IP40, IP65, and plug socket protection alongside detenting, non-detenting, and covered manual override options. Certifications comprise RCM compliance, c UL us recognition (OL), CE marking per EU EMC, low voltage, and RoHS directives, plus corresponding UKCA markings for EMC, electrical equipment, and RoHS instructions with any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566476
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566476.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 300 l/min...320 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 3.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
