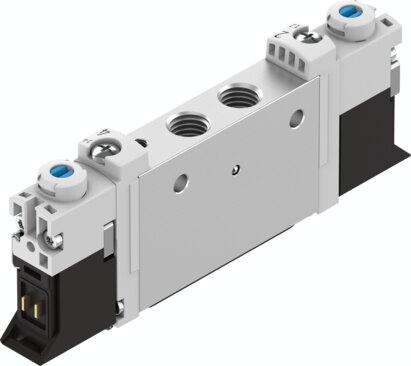

Name: Festo 566481 Air solenoid valve VUVG-L10-T32H-AZT-M7-1P3
Brand: Festo

Air solenoid valve VUVG-L10-T32H-AZT-M7-1P3

The Festo 566481 is a 10 mm electrical industrial component featuring a 2x3/2 open/closed monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating at 24V DC with an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and a normal nominal flow rate of 170 l/min, this piloted unit includes external pilot air supply ports, an M7 pneumatic working port, an adjustable exhaust air function, and a pneumatic spring reset method. It holds RCM compliance and c UL us recognized (OL) certifications alongside CE and UKCA markings per EU and UK directives for EMC, low voltage, and RoHS, while providing IP40, IP65, and plug socket protection ratings, a 2.7 mm nominal width, versatile mounting positions, and detenting, non-detenting, or covered manual overrides. Submit the exact part number, quantity, and application requirements for an RFQ quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566481
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566481.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x3/2, open/closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 170 l/min
Pneumatic working port: M7
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | IP65 | With plug socket
Nominal width: 2.7 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Suitability for vacuum: No
