Name: Festo 566487 Air solenoid valve VUVG-B10-T32C-AZT-F-1P3
Brand: Festo

Air solenoid valve VUVG-B10-T32C-AZT-F-1P3

The Festo 566487 is an electrical 2x3/2 closed, monostable industrial component utilizing a piston gate valve structural design with a 10 mm valve size and a 2.7 mm nominal width. Featuring a piloted type of control with an external pilot air supply port and soft sealing principle, this unit operates at 24V DC within an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and delivers a normal nominal flow rate of 150 l/min to 170 l/min. It includes an adjustable exhaust air function, pneumatic spring reset method, flange pneumatic working port, and versatile manual override options comprising detenting, non-detenting, and covered configurations, supported by IP40, IP65, and plug socket protection degrees. Certified with RCM compliance mark and c UL us - recognized (OL) ratings, it carries CE and UKCA markings as per EU and UK directives for EMC, low voltage, and RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566487
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566487.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

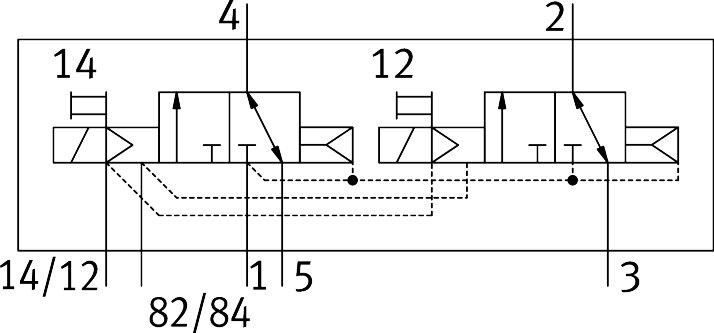

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Valve size: 10 mm
Normal nominal ow rate (normalized to DIN 1343): 150 l/min...170 l/min
Pneumatic working port: Flange
Operating voltage: 24V DC
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | IP65 | With plug socket
Nominal width: 2.7 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.15 MPa...0.8 MPa
Pilot pressure: 1.5 bar...8 bar
Suitability for vacuum: No
