Festo
566488

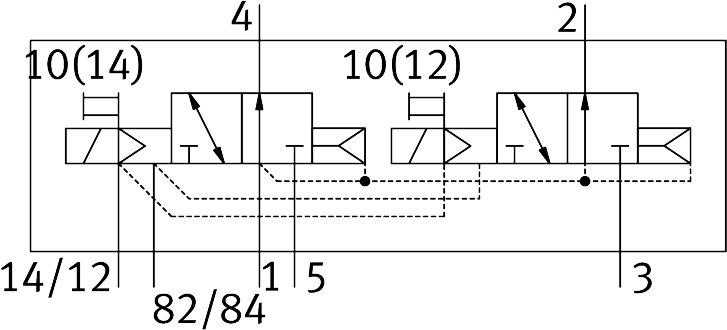

Air solenoid valve VUVG-B10-T32U-AZT-F-1P3
The Festo 566488 is an electrical industrial component featuring a 2x3/2 open monostable valve function, a 10 mm valve size, and a piston gate valve structural design with a soft sealing principle. It operates at 24V DC within an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar) and delivers a normal nominal flow rate of 150 l/min to 170 l/min through a flanged pneumatic working port. This piloted unit includes a pneumatic spring reset method, an adjustable exhaust air function, an external pilot air supply port, a 2.7 mm nominal width, and multiple manual override options including detenting, non-detenting, and covered configurations. Certified with RCM compliance and c UL us recognition (OL), it carries CE and UKCA markings per applicable EMC, low voltage, and RoHS directives, alongside IP40, IP65, and plug socket degrees of protection for any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566488
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566488.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 open monostable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 150 l/min...170 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 2.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.15 MPa...0.8 MPa
- Pilot pressure
- 1.5 bar...8 bar
- Suitability for vacuum
- No
