Reference imageConfirm configuration by manufacturer part number.
Festo
566501

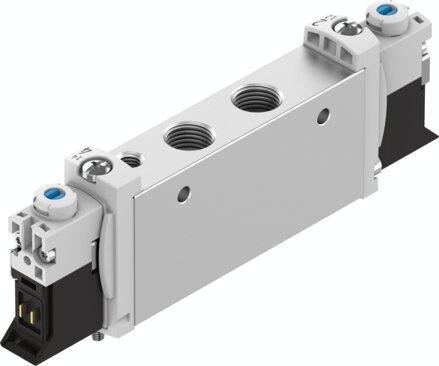

Air solenoid valve VUVG-L14-P53C-T-G18-1P3
The Festo part number 566501 is an electrical 14 mm industrial component featuring a 5/3-way closed valve function with a piston gate valve structural design and a mechanical spring reset method. It delivers a normal nominal flow rate of 620 l/min to 650 l/min through G1/8 pneumatic working ports at an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using a 24V DC operating voltage. This piloted unit operates with an internal pilot air supply, adjustable exhaust air function, soft sealing principle, and a 5.6 mm nominal width, while supporting any mounting position and offering detenting, non-detenting, and covered manual overrides. Certified with RCM and c UL us recognition (OL), it carries CE and UKCA markings per applicable EMC, low voltage, and RoHS directives, and achieves IP40 or IP65 protection degrees when fitted with a plug socket. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566501
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566501.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 620 l/min...650 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566501. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
