566508

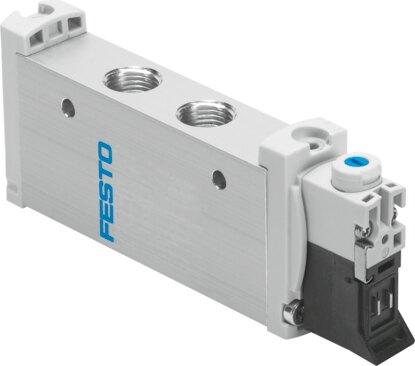

Name: Festo 566508 Air solenoid valve VUVG-L14-M52-AZT-G18-1P3
Brand: Festo

Air solenoid valve VUVG-L14-M52-AZT-G18-1P3

The Festo 566508 is an electrical 5/2-way monostable industrial component utilizing a piston gate valve structural design with a 14 mm valve size and a 5.6 mm nominal width. This piloted valve features a normal nominal flow rate of 680 l/min to 730 l/min, G1/8 pneumatic working ports, external pilot air supply, and an adjustable exhaust air function with a soft sealing principle. Operating at 24V DC across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), it offers a pneumatic spring reset, any mounting position, detenting, non-detenting, and covered manual override options, and IP40, IP65 protection with a plug socket. Certifications and markings include RCM compliance, c UL us recognition (OL), and adherence to EU and UKCA directives for EMC, low voltage, and RoHS. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566508
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566508.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 680 l/min...730 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
Degree of protection: IP40 | IP65 | With plug socket
Nominal width: 5.6 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting | Covered
Type of control: Piloted
Pilot air supply port: External
Lap: Positive overlap
Pilot pressure MPa: 0.25 MPa...0.8 MPa
Pilot pressure: 2.5 bar...8 bar
Suitability for vacuum: Yes

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 566508. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
