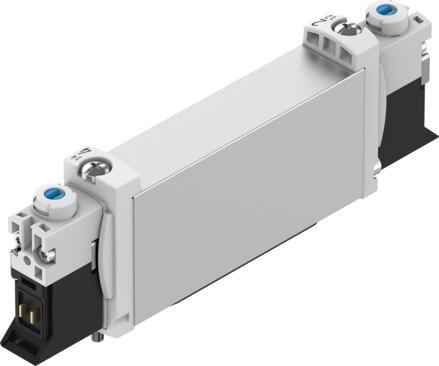

Reference imageConfirm configuration by manufacturer part number.
Festo
566519
Air solenoid valve VUVG-B14-P53E-ZT-F-1P3
The Festo part number 566519 is an electrically actuated 5/3 exhausted piston gate valve featuring a 14 mm valve size, a 5.6 mm nominal width, and a normal nominal flow rate ranging from 460 l/min to 600 l/min. Configured with a soft sealing principle, an adjustable exhaust air function, and a mechanical spring reset method, this piloted component operates on 24V DC within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). It includes a flanged pneumatic working port, an external pilot air supply port, detenting, non-detenting, and covered manual override options, and offers IP40, IP65, or plug socket degrees of protection alongside any mounting position. The unit carries RCM and c UL us (OL) certifications, along with CE and UKCA markings conforming to applicable EMC, low voltage, and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566519
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566519.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 460 l/min...600 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU low voltage directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions | To UK instructions for electrical equipment
- Degree of protection
- IP40 | IP65 | With plug socket
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566519. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
