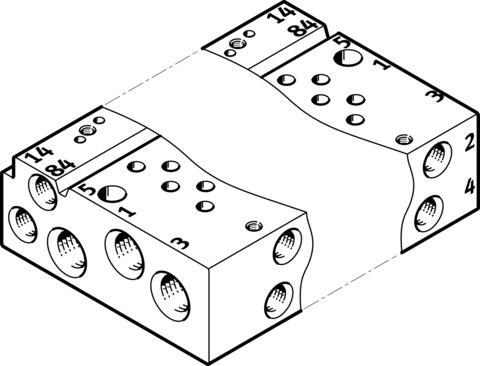

Reference imageConfirm configuration by manufacturer part number.
Festo
566549
Manifold rail VABM-L1-10AW-M7-5
The Festo 566549 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm and a product weight of 114 g, supporting a maximum of 16 valve positions. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and includes M5 pilot air ports 12/14, M5 pilot exhaust air ports 82/84, M7 pneumatic connections 1, 3, and 5, alongside M5 pneumatic connections 2 and 4. Built with RoHS-compliant materials, it achieves a CRC rating of 2 for moderate corrosion stress and VDMA24364-B1/B2-L LABS conformity, while carrying RCM compliance and c UL us-recognized certifications. Installation requires maximum tightening torques of 1.5 Nm for DIN rail and wall mounting, and 0.45 Nm for valve mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566549
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566549.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 0.45 Nm
- Max. tightening torque for wall mounting
- 1.5 Nm
- Product weight
- 114 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M5
- Pneumatic connection 3
- M7
- Pneumatic connection 4
- M5
- Pneumatic connection 5
- M7
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
