Festo
566553

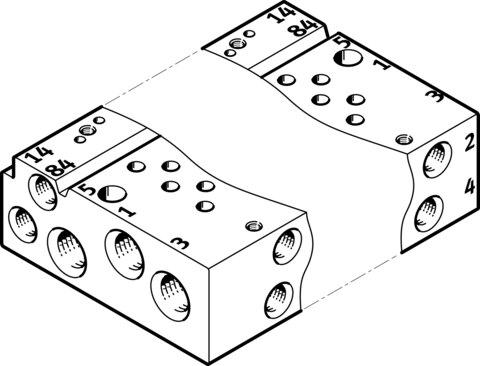

Manifold rail VABM-L1-10AW-M7-9
The Festo 566553 industrial component features a 10.5 mm width dimension, a wrought aluminum alloy manifold rail, and a product weight of 186 g with RoHS compliant materials. It supports a maximum of 16 valve positions, an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and carries RCM compliance and c UL us recognized certifications alongside a CRC 2 moderate corrosion stress rating and VDMA24364-B1/B2-L LABS conformity. The unit includes M5 pilot air ports 12/14 and pilot exhaust air ports 82/84, along with pneumatic connections 1 and 3 at M7 and pneumatic connections 2, 4, and 5 at M5, while requiring maximum tightening torques of 1.5 Nm for DIN rail and wall mounting and 0.45 Nm for valve mounting. Submit part number 566553 with your exact quantity and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566553
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566553.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 0.45 Nm
- Max. tightening torque for wall mounting
- 1.5 Nm
- Product weight
- 186 g
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- M7
- Pneumatic connection 2
- M5
- Pneumatic connection 3
- M7
- Pneumatic connection 4
- M5
- Pneumatic connection 5
- M7
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
