566556

Name: Festo 566556 Manifold rail VABM-L1-10AW-M7-14
Brand: Festo

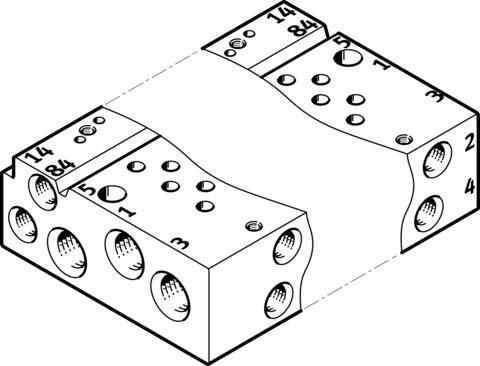

Manifold rail VABM-L1-10AW-M7-14

The Festo 566556 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm and a product weight of 276 g. It supports a maximum of 16 valve positions, an operating pressure ranging from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and features M7 pneumatic connections 1, 3, and 5 alongside M5 pneumatic connections 2 and 4, M5 pilot air ports 12/14, and M5 pilot exhaust air ports 82/84. Built with RoHS-compliant materials meeting VDMA24364-B1/B2-L LABS conformity and a CRC 2 moderate corrosion resistance class, this unit carries RCM compliance and c UL us recognition (OL) certifications. Maximum tightening torques are specified at 1.5 Nm for DIN rail and wall mounting, and 0.45 Nm for valve mounting. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566556
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566556.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 10.5 mm
Max. no. of valve positions: 16
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Certication: RCM compliance mark | c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. tightening torque for DIN rail mounting: 1.5 Nm
Max. tightening torque for valve mounting: 0.45 Nm
Max. tightening torque for wall mounting: 1.5 Nm
Product weight: 276 g
Pilot air port 12/14: M5
Pilot exhaust air port 82/84: M5
Pneumatic connection 1: M7
Pneumatic connection 2: M5
Pneumatic connection 3: M7
Pneumatic connection 4: M5
Pneumatic connection 5: M7
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 566556. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
