Festo
566558

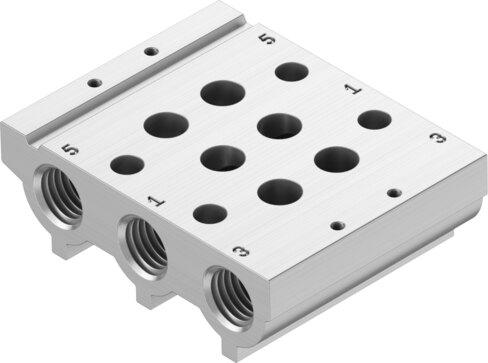

Manifold rail VABM-L1-10S-G18-2
The Festo 566558 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm and a product weight of 66 g. It supports a maximum of 16 valve positions, an operating pressure ranging from -0.9 bar to 10 bar (-0.09 MPa to 1 MPa), and includes G1/8 pneumatic connections 1 and 3. The unit holds RCM compliance and c UL us recognition (OL) certifications, possesses a corrosion resistance class (CRC) of 2 for moderate corrosion stress, and meets ISO 14644-1 class 5 cleanroom standards along with VDMA24364-B1/B2-L LABS conformity. Furthermore, it is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a) and complies with RoHS material regulations, requiring maximum tightening torques of 1.5 Nm for DIN rail mounting, 0.45 Nm for valve mounting, and 3 Nm for wall mounting. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566558
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566558.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 10.5 mm
- Max. no. of valve positions
- 16
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Max. tightening torque for DIN rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 0.45 Nm
- Max. tightening torque for wall mounting
- 3 Nm
- Product weight
- 66 g
- Pneumatic connection 1
- G1/8
- Pneumatic connection 3
- G1/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566558. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
