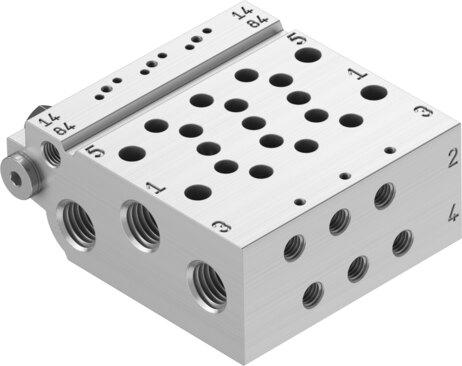

Name: Festo 566583 Manifold rail VABM-L1-10W-G18-3
Brand: Festo

Manifold rail VABM-L1-10W-G18-3

The Festo part number 566583 is an industrial component featuring a wrought aluminum alloy manifold rail with a width dimension of 10.5 mm, supporting a maximum of 16 valve positions and an operating pressure range from -0.09 MPa to 1 MPa. Constructed with a moderate corrosion resistance class of CRC 2 and RoHS-compliant materials, this 135 g unit includes G1/8 pneumatic connections 1, 3, and 5 alongside M5 connections 2, 4, 12/14, and 82/84, while achieving maximum tightening torques of 1.5 Nm for DIN rail mounting, 0.45 Nm for valve mounting, and 3 Nm for wall mounting. Certified as c UL us recognized (OL) and conforming to VDMA24364-B1/B2-L LABS (PWIS) standards, this assembly requires professional integration into industrial pneumatic systems. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566583
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566583.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 10.5 mm
Max. no. of valve positions: 16
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Max. tightening torque for DIN rail mounting: 1.5 Nm
Max. tightening torque for valve mounting: 0.45 Nm
Max. tightening torque for wall mounting: 3 Nm
Product weight: 135 g
Pilot air port 12/14: M5
Pilot exhaust air port 82/84: M5
Pneumatic connection 1: G1/8
Pneumatic connection 2: M5
Pneumatic connection 3: G1/8
Pneumatic connection 4: M5
Pneumatic connection 5: G1/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 566583. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
