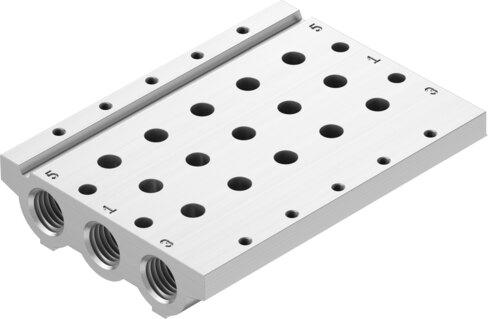

Name: Festo 566621 Manifold rail VABM-L1-14S-G14-5
Brand: Festo

Manifold rail VABM-L1-14S-G14-5

Engineered with a 16 mm width dimension and a wrought aluminum alloy manifold rail, this Festo industrial component supports a maximum of 16 valve positions and an operating pressure range of -0.9 bar to 10 bar. It features CRC 2 moderate corrosion stress resistance, ISO 14644-1 Class 5 cleanroom suitability, and compliance with VDMA24364-B1/B2-L LABS conformity alongside RCM and c UL us recognitions. The unit weighs 241 g, includes G1/4 pneumatic connections 1, 3, and 5, and meets RoHS material directives while being suitable for battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566621
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566621.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 16 mm
Max. no. of valve positions: 16
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Certication: RCM compliance mark | c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Max. tightening torque for DIN rail mounting: 1.5 Nm
Max. tightening torque for valve mounting: 0.65 Nm
Max. tightening torque for wall mounting: 3 Nm
Product weight: 241 g
Pneumatic connection 1: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 5: G1/4
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy
