566627

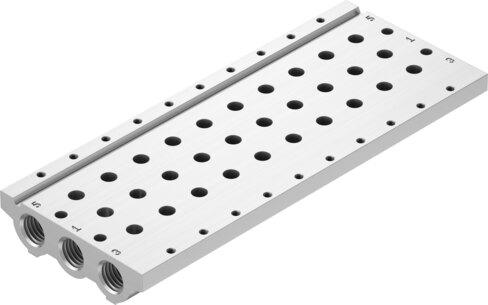

Name: Festo 566627 Manifold rail VABM-L1-14S-G14-12
Brand: Festo

Manifold rail VABM-L1-14S-G14-12

Manufactured from wrought aluminum alloy with a 16 mm width dimension and a product weight of 528 g, this Festo industrial component supports a maximum of 16 valve positions and an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar). It features G1/4 pneumatic connections 1, 3, and 5, achieves corrosion resistance class CRC 2, and complies with RCM, c UL us (OL), VDMA24364-B1/B2-L LABS conformity, and RoHS material standards while meeting ISO 14644-1 Class 5 cleanroom suitability and reduced Cu/Zn/Ni battery production criteria. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566627
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566627.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 16 mm
Max. no. of valve positions: 16
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Certication: RCM compliance mark | c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Max. tightening torque for DIN rail mounting: 1.5 Nm
Max. tightening torque for valve mounting: 0.65 Nm
Max. tightening torque for wall mounting: 3 Nm
Product weight: 528 g
Pneumatic connection 1: G1/4
Pneumatic connection 3: G1/4
Pneumatic connection 5: G1/4
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 566627. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
