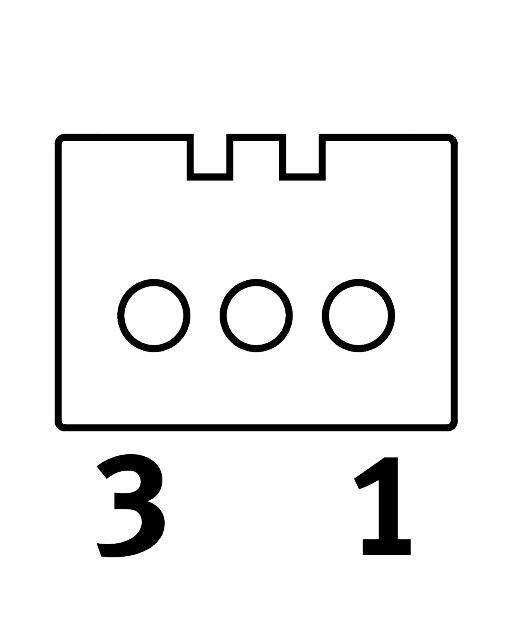

Reference imageConfirm configuration by manufacturer part number.
Festo
566660
Plug socket with cable NEBV-H1G2-P-2.5-N-LE2
The Festo part number 566660 is an industrial component featuring a square socket on the field device side with a straight cable outlet, connection pattern H, snap-locking mounting, and 3 pins with 2 occupied wires, lacking a label holder. On the control side, electrical connection 2 consists of a cable with an open end, 2 pins, and 2 occupied wires spanning a length of 2.5 meters with static application characteristics. Operating across a DC voltage range of 0 V to 60 V, this 35-gram component supports a current rating of 3 A at 40°C and accommodates any mounting position. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566660
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566660.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Mounting position
- Any
- Product weight
- 35 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern H
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 3 A
- Cable length
- 2.5 m
- Cable characteristic
- For static applications
- Cable diameter
- 3.4 mm
- Cable design
- 2 x 0.14 mm²
- Nominal conductor cross section
- 0.14 mm²
- Wire ends
- Stripped | Cut off bluntly
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566660. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
