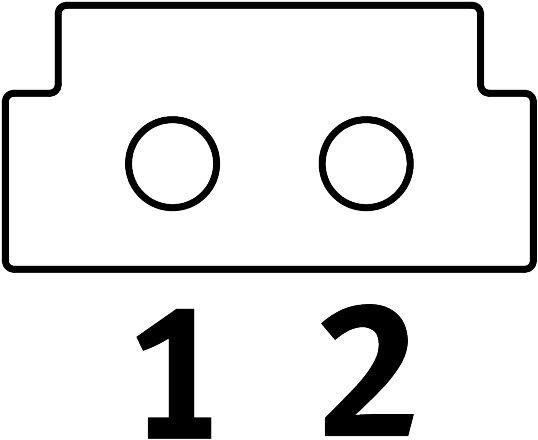

Reference imageConfirm configuration by manufacturer part number.
Festo
566664
Plug socket with cable NEBV-HSG2-KN-2.5-N-LE2
This Festo industrial component, part number 566664, features a straight square socket with a snap-locking mount on the field device side and two open-end single conductors on the control side, utilizing a connection pattern S with two occupied pins and no label holder. The standard cable spans 2.5 meters in length, supports a DC operating voltage range from 0 V to 60 V, carries a current rating of 3 A at 40° C, maintains an overall product weight of 17 g, and accommodates any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566664
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566664.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Mounting position
- Any
- Product weight
- 17 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern S
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- 2x single conductor
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 3 A
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Cable diameter
- 1.3 mm
- Cable design
- 2 x 0.14 mm²
- Nominal conductor cross section
- 0.14 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
