Festo
566665

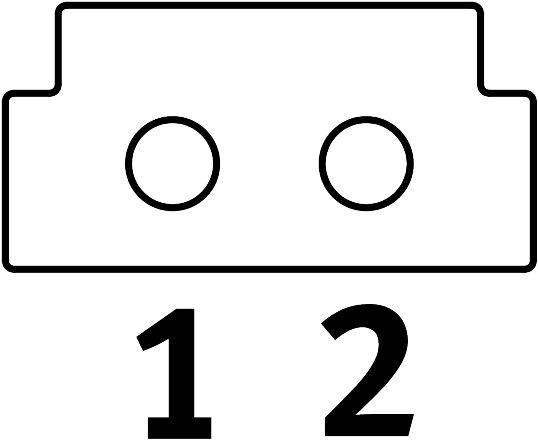

Plug socket with cable NEBV-HSG2-KN-5-N-LE2
Streamline your industrial connectivity setup with this Festo industrial component, part number 566665, featuring a 5-meter standard cable with a straight square socket on the field device side and two open-end single conductors on the control side. This snap-locking 2-pin assembly operates within a 0 V to 60 V DC voltage range, supports a current rating of 3 A at 40°C, and accommodates any mounting position without a label holder at a total product weight of 31 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566665
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566665.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Mounting position
- Any
- Product weight
- 31 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Connection pattern S
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, occupied pins/wires
- 2
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- 2x single conductor
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 2
- Electrical connection 2, occupied pins/wires
- 2
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 3 A
- Cable length
- 5 m
- Cable characteristic
- Standard
- Cable diameter
- 1.3 mm
- Cable design
- 2 x 0.14 mm²
- Nominal conductor cross section
- 0.14 mm²
- Wire ends
- Cut off bluntly
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- -5 °C...60 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566665. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
