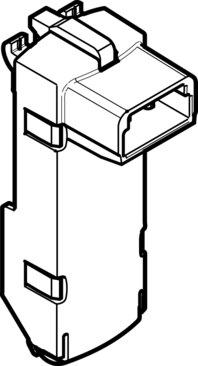

Reference imageConfirm configuration by manufacturer part number.
Festo
566718
Electrical sub-base VAVE-L1-1VS2-LP
The Festo 566718 is a 1.5 g industrial component featuring a black PA housing with an IP40 degree of protection and clip mounting for any position. It operates at a nominal DC voltage of 12 V or 24 V via a 2-pin socket electrical connection, incorporating bipolar reverse polarity protection, spark arresting, and an LED signal status display. This RoHS-compliant part supports an extended ambient temperature range of -5 to 60 °C, a standard ambient temperature range of -5 °C to 50 °C, a surge resistance of 0.8 kV, a contamination level of 3, corrosion resistance class 0, and VDMA24364-B1/B2-L LABS conformity without a protective earth connection. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566718
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566718.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Reverse polarity protection
- Bipolar
- Additional functions
- Spark arresting
- Signal status display
- LED
- Nominal operating voltage DC
- 12 V | 24 V
- Surge resistance
- 0.8 kV
- Contamination level
- 3
- Extended ambient temperature
- -5 - 60 °C
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP40
- Ambient temperature
- -5 °C...50 °C
- Mounting position
- Any
- Product weight
- 1.5 g
- Electrical connection
- 2-pin | Socket
- Protective earth connection
- Not available
- Type of mounting
- Clip
- Housing colour
- Black
- Note on materials
- RoHS compliant
- Housing material
- PA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566718. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
