566998

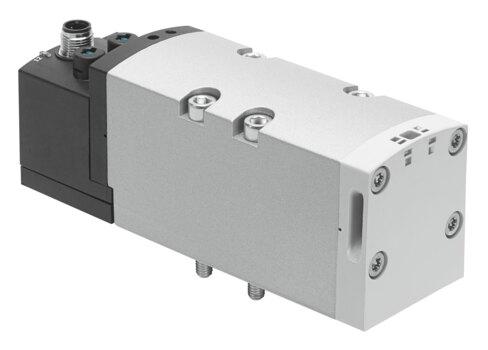

Name: Festo 566998 Air solenoid valve VSVA-B-P53E-D-D2-1R5L
Brand: Festo

Air solenoid valve VSVA-B-P53E-D-D2-1R5L

The Festo part number 566998 is a 5/3 exhausted electrical industrial component featuring a piston gate valve structure with soft sealing and a nominal width of 15 mm. Operating at 24V DC within a pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar), this 52 mm wide unit achieves a normal nominal flow rate of 2700 l/min and conforms to ISO 5599-1 with IP65 and NEMA 4 protection ratings. It includes detenting and non-detenting manual override, adjustable exhaust air functions, and holds C-Tick, c CSA us (OL), c UL us - recognized (OL), KC-EMV, CE, and UKCA certifications. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 566998
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 566998.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/3 exhausted
Actuation type: Electrical
Width: 52 mm
Normal nominal ow rate (normalized to DIN 1343): 2700 l/min
Pneumatic working port: Sub-base, size 2 according to ISO 5599-1 | G3/8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Certication: C-Tick | c CSA us (OL) | c UL us - recognized (OL)
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 15 mm
Width dimension: 59 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: LED

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 566998. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
