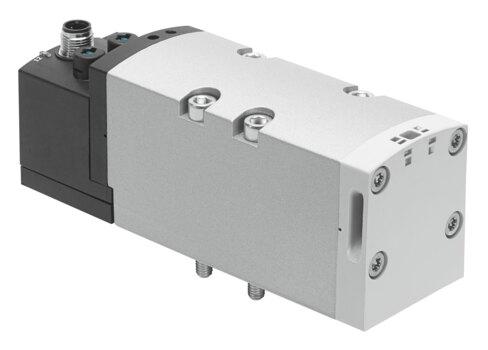

Reference imageConfirm configuration by manufacturer part number.
Festo
566999
Air solenoid valve VSVA-B-P53U-D-D2-1R5L
The Festo 566999 is an electrical piston gate valve featuring a 5/3-way pressurized valve function, a 52 mm width, and a normal nominal flow rate of 2700 l/min normalized to DIN 1343. Built to ISO 5599-1 standards with a soft sealing principle and a nominal width of 15 mm, this component operates on 24V DC within an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar). It includes a G3/8 or ISO 5599-1 size 2 sub-base pneumatic working port, an IP65 and NEMA 4 degree of protection, and carries C-Tick, c CSA us (OL), c UL us recognized (OL), KC-EMV, CE, and UKCA certifications. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 566999
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 566999.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 2700 l/min
- Pneumatic working port
- Sub-base, size 2 according to ISO 5599-1 | G3/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Structural design
- Piston gate valve
- Certication
- C-Tick | c CSA us (OL) | c UL us - recognized (OL)
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 15 mm
- Width dimension
- 59 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- LED
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 566999. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
