567000

Name: Festo 567000 Air solenoid valve VSVA-B-T32C-AZD-D2-1R5L
Brand: Festo

Air solenoid valve VSVA-B-T32C-AZD-D2-1R5L

The Festo 567000 is an electrical industrial component featuring a 2x3/2 closed, monostable valve function and a piston gate valve structural design with a soft sealing principle. It delivers a normal nominal flow rate of 2200 l/min across an operating pressure range of 0.3 MPa to 1 MPa and operates on 24V DC. Built with a 52 mm width, size 2 ISO 5599-1 sub-base or G3/8 pneumatic working ports, and IP65 and NEMA 4 degrees of protection, the unit holds C-Tick, c CSA us, and c UL us certifications alongside CE and UKCA compliance for the EMC directive. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567000
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567000.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

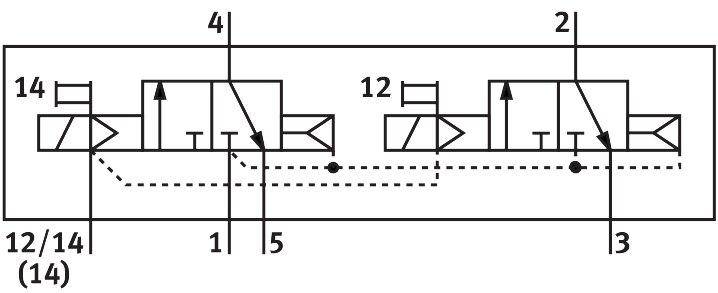

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Width: 52 mm
Normal nominal ow rate (normalized to DIN 1343): 2200 l/min
Pneumatic working port: Sub-base, size 2 according to ISO 5599-1 | G3/8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: C-Tick | c CSA us (OL) | c UL us - recognized (OL)
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 15 mm
Width dimension: 59 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Positive overlap

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 567000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
