Name: Festo 567001 Air solenoid valve VSVA-B-T32U-AZD-D2-1R5L
Brand: Festo

Air solenoid valve VSVA-B-T32U-AZD-D2-1R5L

The Festo part number 567001 is a 52 mm wide industrial component featuring a 2x3/2 open monostable valve function and electrical actuation. Built with a piston gate valve structural design and soft sealing principle, this component delivers a normal nominal flow rate of 2200 l/min at an operating pressure ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar). It includes a 24V DC operating voltage, a pneumatic spring reset method, and a nominal width of 15 mm conforming to ISO 5599-1 standards with size 2 sub-base or G3/8 pneumatic working ports. The unit provides IP65 and NEMA 4 protection while carrying C-Tick, c CSA us (OL), c UL us - recognized (OL), KC-EMV, CE, and UKCA certifications. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 567001
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 567001.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

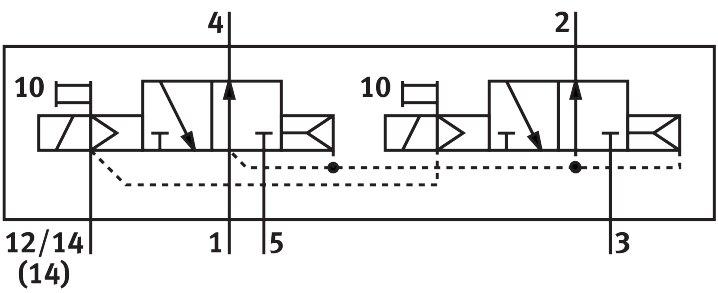

Valve function: 2x3/2 open monostable
Actuation type: Electrical
Width: 52 mm
Normal nominal ow rate (normalized to DIN 1343): 2200 l/min
Pneumatic working port: Sub-base, size 2 according to ISO 5599-1 | G3/8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...1 MPa | 3 bar...10 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: C-Tick | c CSA us (OL) | c UL us - recognized (OL)
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 15 mm
Width dimension: 59 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 5599-1
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Positive overlap
