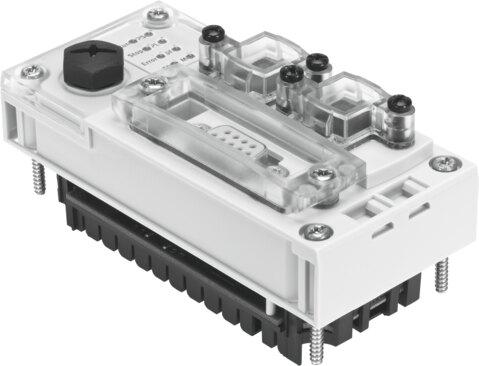

Reference imageConfirm configuration by manufacturer part number.
Festo
567346
Control block CPX-CEC
The Festo industrial component, part number 567346, measures 50 mm x 107 mm x 55 mm, weighs 155 g, and is built with a PA-reinforced and PC housing offering IP65 and IP67 degrees of protection. It operates within an ambient temperature range of -5 °C to 50 °C at 95% non-condensating relative air humidity, featuring a CRC rating of 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity. This RoHS-compliant device supports CODESYS level 2, EasyIP, Modbus TCP, and TCP/IP protocols via one RJ45 Ethernet interface with multiple LED indicators for power, status, and diagnostics, alongside a rotary switch for RUN/Stop control. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 567346
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 567346.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protocol
- CODESYS level 2 | EasyIP | Modbus® TCP | TCP/IP
- Dimensions W x L x H
- 50 mm x 107 mm x 55 mm
- Product weight
- 155 g
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Housing material
- PA-reinforced | PC
- LED display (product-specic)
- ERR: PLC runtime error | M: Modify/force enabled | PL: Load supply | PS: electronics supply, sensor supply | RUN: PLC status | SF: System fault | STOP: PLC status
- LED display (bus-specic)
- TP: Link/traffic
- Device-specic diagnostics
- Channel-oriented and module-oriented diagnostics | Undervoltage/short circuit of modules | Diagnostic memory
- Control elements
- Rotary switch for RUN/Stop
- IP address setting
- DHCP | Via CODESYS | Via MMI
- Ethernet interface
- RJ 45 (socket, 8-pin)
- Ethernet, number
- 1
- Ethernet, supported protocols
- TCP/IP, EasyIP, Modbus TCP
- Ethernet, connector plug
- RJ45
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 567346. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
